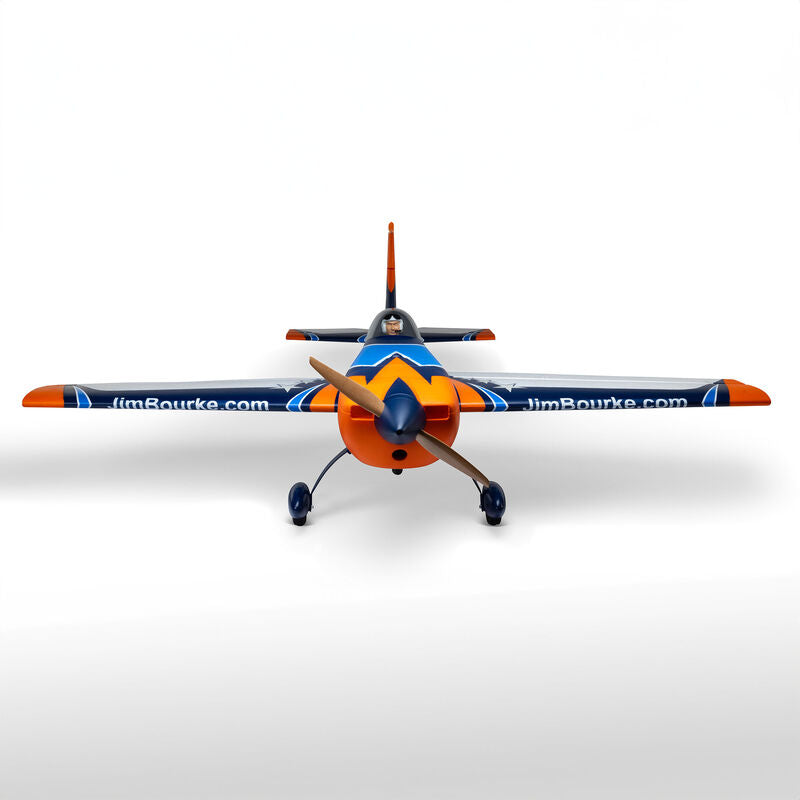

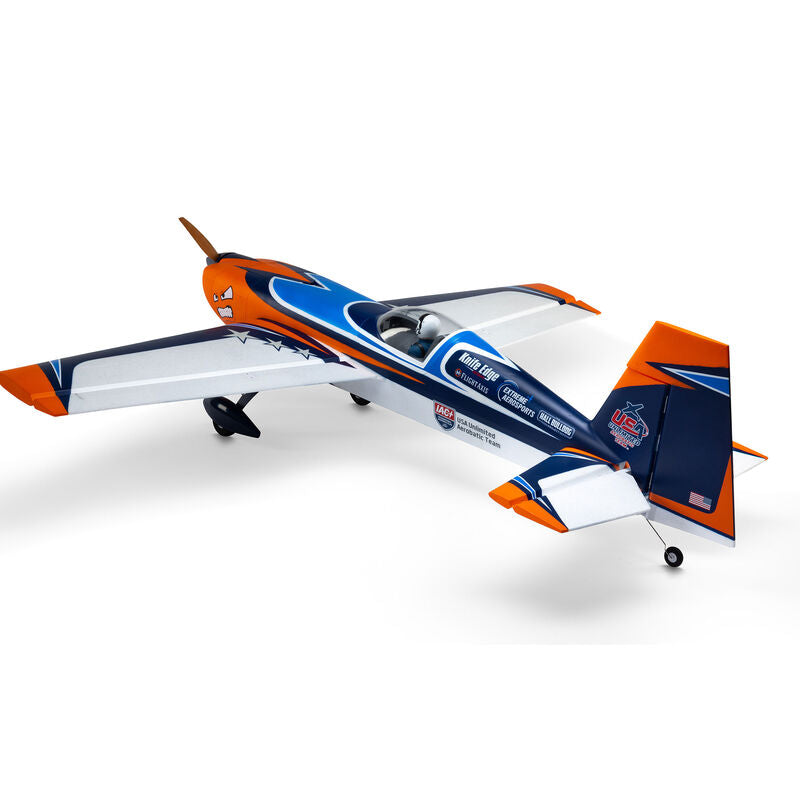

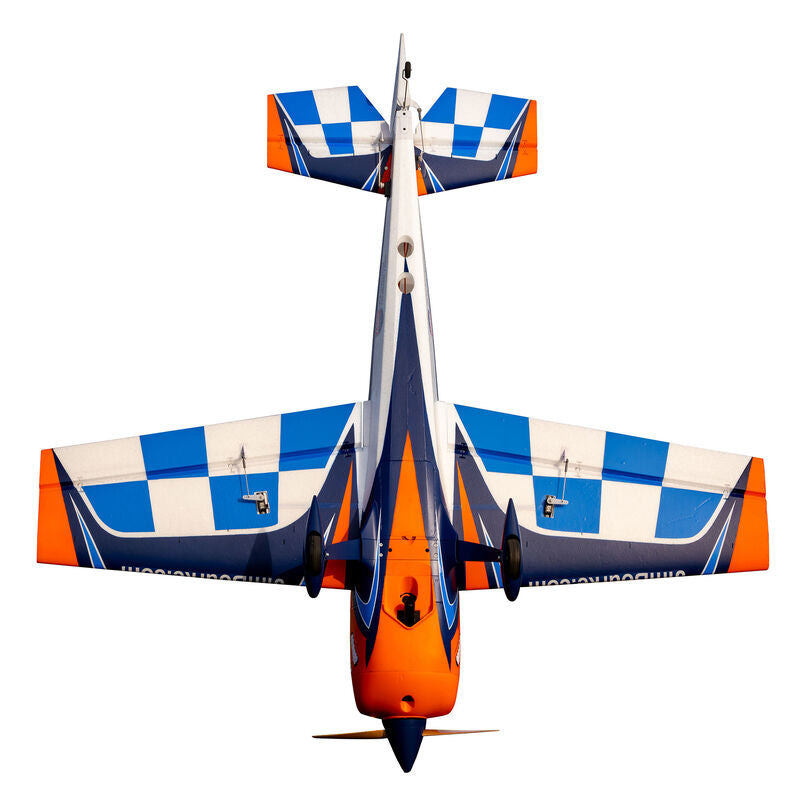

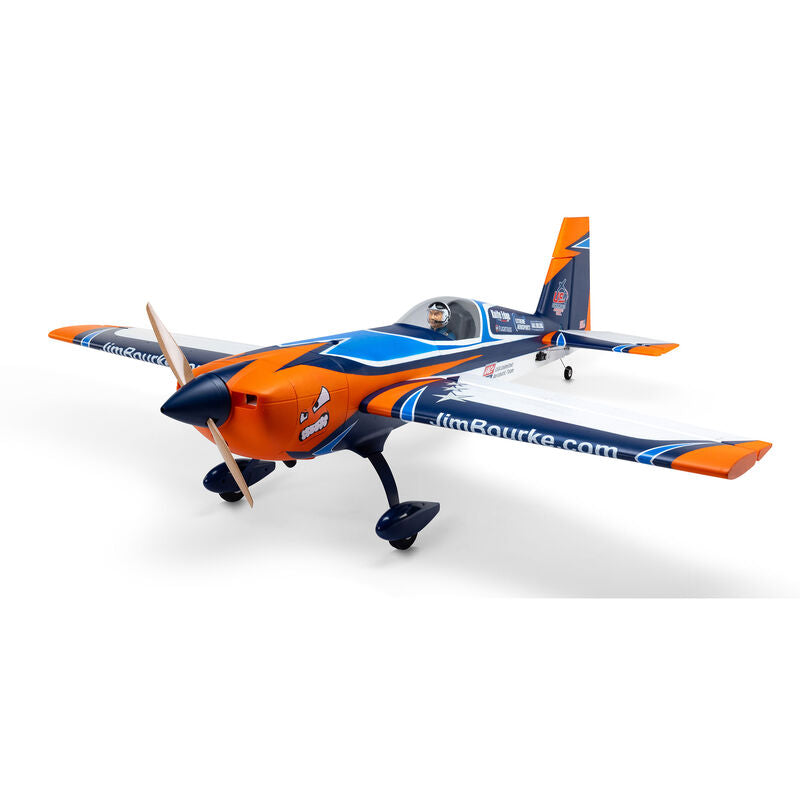

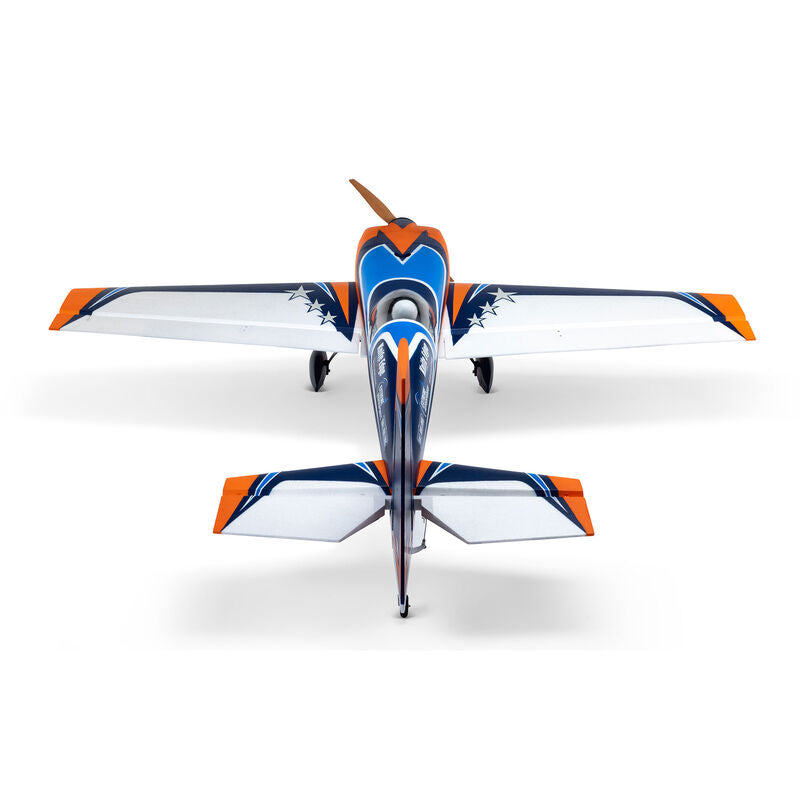

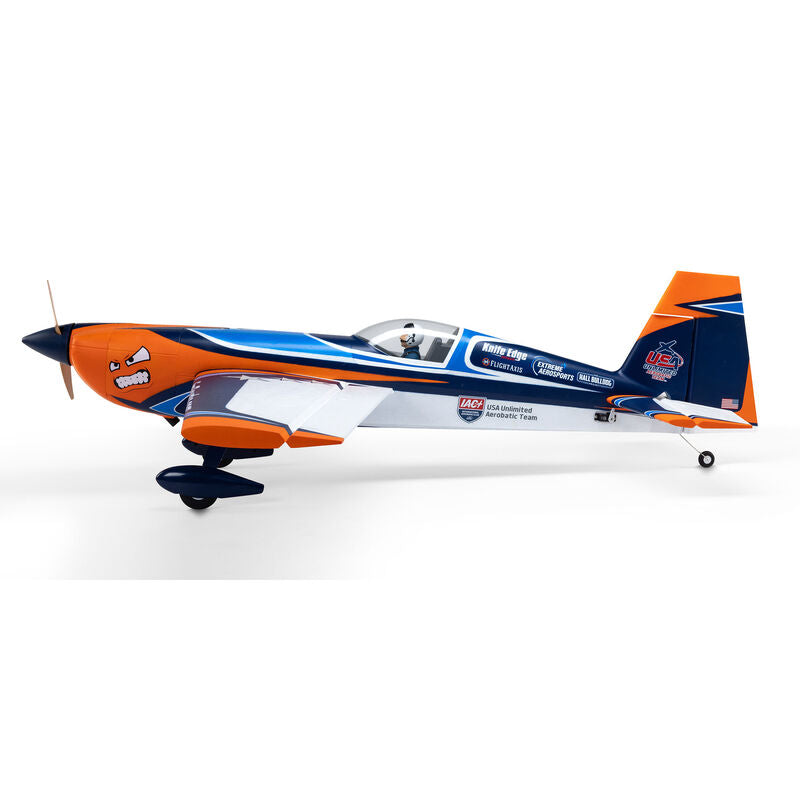

- Eflite Extra 330 SC 3D 1.3m BNF Basic with AS3X and SAFE Select
-
E-flite Extra 330 SC 3D 1.3m BNF Basic Introduction
For three decades, full-scale Extra aircraft have delivered incredible aerobatic performance with virtually unlimited potential. Variants have been flown to first place finishes in a long list of competitions, including at the recent world championships. That's why Jim Bourke – the creator of RCGroups.com and owner of Knife Edge Software that originally developed the RealFlight RC simulator – chooses to fly an Extra 330SC in airshows and competitions around the world. The E-flite® Extra 330SC 3D 1.3m is a replica of Jim's airplane that features his unique and iconic trim scheme. It's an updated and upgraded version of the Extra 300 3D 1.3m that delivers unbelievable sport flying, aerobatic, and 3D capabilities for intermediate to experienced pilots. It features digital, metal-geared servos, plus a 3S and 4S compatible power system now including an 85A Spektrum Avian Smart Lite ESC. The BNF Basic version is also equipped with an AR631 receiver to deliver real-time telemetry data along with AS3X and SAFE Select technologies that make it even easier to fly!
E-flite Extra 330 SC 3D 1.3m BNF Basic Overview
The E-flite Extra 330SC 3D 1.3m offers nearly unlimited aerobatic and 3D performance potential – even beyond that of the full-scale design! It's a replica of the airplane that Jim Bourke flies in airshows and competitions around the world, including his unique and highly visible trim scheme. It's also an updated and upgraded version of the Extra 300 3D 1.3m that features a larger hatch and opening with plastic edges to eliminate paint chipping when more easily installing/removing 3S or 4S 2200mAh to 3200mAh batteries. The strengthened motor mount better secures the brushless outrunner motor that's equipped with a lightweight wooden propeller to deliver outstanding thrust and vertical performance, along with extremely crisp throttle response thanks to the upgraded 85-amp Spektrum Avian Smart Lite ESC. Its fully molded EPO airframe is composite reinforced for an outstanding blend of rigidity and durability while also being as lightweight as possible. And the wire landing gear has been replaced with much stronger aluminum gear to make it even more durable! Plus, fast and precise factory-installed digital, metal-geared servos with ball-link equipped linkages drive the oversized control surfaces to deliver incredible 3D and precision flight capabilities. So whether you fly it mild to hone your sport or precision aerobatic flying skills or fly it wild to learn or perform the most aggressive 3D maneuvers, the Extra 330SC 3D 1.3m will offer unexpected levels of capability and performance you'll enjoy flight after flight.
E-flite Extra 330 SC 3D 1.3m BNF Basic Features
- Popular 3S and 4S 2200–3200mAh batteries deliver excellent performance and flight times
- Compatible with the Spektrum DXS transmitter included with many of the most popular E-flite and HobbyZone trainer airplane models
- Easier to fly with innovative and optional-use SAFE Select flight envelope protection
- The unmatched stability and locked-in feel of exclusive AS3X technology
- Four factory-installed digital and metal-geared servos with ball-link-equipped linkages
- Oversized control surfaces for maximum 3D aerobatic capability and performance
- Lightweight yet durable, composite-reinforced construction with EPO material
- Factory-finished with Jim's vivid paint scheme and bold graphics
- More durable aluminum landing gear with wheel pants
- Two-piece plug-in wings with carbon fiber wing tube
Skill Level 2 – Some Experience Required
Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. And although this is one of the easiest to fly Extra models yet, it's not a suitable first-ever RC aircraft for new pilots or “next step after a trainer” model for low-time pilots. You should have the experience and skills necessary to successfully fly other aerobatic capable models like the E-flite T-28 Trojan 1.1m, Timber X 1.2m, Decathlon RJG 1.2m, Commander mPd 1.4m, or other similar models before attempting to fly the Extra 330SC 3D 1.3m.
Smart Technology
The exclusive Spektrum Avian Smart Lite ESC provides a variety of real-time power system-related telemetry data including overall battery voltage, current draw, motor RPM, and more – with both Smart and non-Smart batteries – via compatible receivers (including the AR631) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly.
Abundant Power
The included brushless power system features an 85-amp Smart Lite ESC and an outrunner motor equipped with a lightweight wooden propeller that deliver an abundance of scale-like power with 3S batteries, or unlimited vertical performance with 4S 2200–3200mAh batteries. Plus, the motor mount has been strengthened to better handle every power-on flight load possible.
Durable Precision
Construction with lightweight yet durable, composite-reinforced EPO material ensures the best possible flight performance while the factory-installed digital, metal-geared servos and ball-link equipped linkages deliver precise control of the oversized control surfaces whether you're performing sport, precision, or aggressive 3D aerobatic maneuvers.
Authentic Appearance
In addition to the scale outline, this replica is also appointed with a clear canopy and a detailed cockpit that features an instrument panel and a painted pilot figure. Plus the now more durable aluminum landing gear is equipped with fairings and wheel pants that add to the great looks and authentic scale appearance.
Jim Bourke Trim Scheme
Factory-finished in the unique and iconic trim scheme featured on the full-scale Extra 330SC that Jim Bourke – the creator of RCGroups.com and owner of Knife Edge Software that originally developed the RealFlight RC simulator – flies in airshows and competitions around the world.
Bind-N-Fly Completion Level AdvantageAlready own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!
This Bind-N-Fly Basic model is equipped with a Spektrum 2.4GHz DSMX® receiver featuring AS3X (Artificial Stabilization–3-aXis) technology that works behind the scenes to smooth out the effects of wind and turbulence. The result is a heightened sense of stability and precision that makes you feel like you're flying a much larger, expertly tuned aircraft.
If this is your first model of its type, or you want an extra margin of safety while familiarizing yourself with the airplane, you can enable the optional-use SAFE® Select flight envelope protection technology built into the receiver. No programming is required. Simply change up the binding sequence as directed in the manual.
With SAFE Select enabled, you get:
Pitch and Bank Angle Limits
- These envelope limits keep the airplane from rolling or pitching upside down. They also prevent excessive climb or dive angles.
Automatic Self-Leveling
- The airplane instantly returns to and holds level flight when the sticks are released and in the center position. It's also helpful for keeping the wings level during takeoffs/launches and landings.
Easy Switch Assignment—No Complex Programming Required
- The simple procedure for assigning a transmitter switch to turn SAFE Select features on and off doesn't require any complex programming and takes just a few seconds.
If you don't want to enable the SAFE Select features, just bind the receiver normally and it will function like a standard AS3X receiver.
E-flite Extra 330 SC 3D 1.3m Video
Product Specifications
Manufacturer # EFL05050 LiPo Compatibility 3S, 4S Completion Level Bind-N-Fly Basic Recommended Motor Battery 3S 11.1V or 4S 14.8V 2200–3200mAh LiPo with EC3™ or IC3® Connector Lighting No Minimum Required Radio Full-range 4–5+ channel Spektrum DSMX®/DSM2® compatible transmitter Radio Sold Separately Technology Smart, AS3X and SAFE Charger Sold Separately Receiver Included Motor Type Brushless Speed Control Included Product Weight Without Battery: 59.8oz (1696g) / With Recommended Battery: 75oz (2131g) Power Type Electric Servos Included Skill Level Level 2 Trim Scheme Colors Jim Bourke Trim Scheme Wingspan 51.5" (1308 mm) Battery Sold Separately Connector Type IC3 Product Length 49.6" (1260 mm) Approximate Assembly Time Less than 1 hour Flaps No Material EPO
