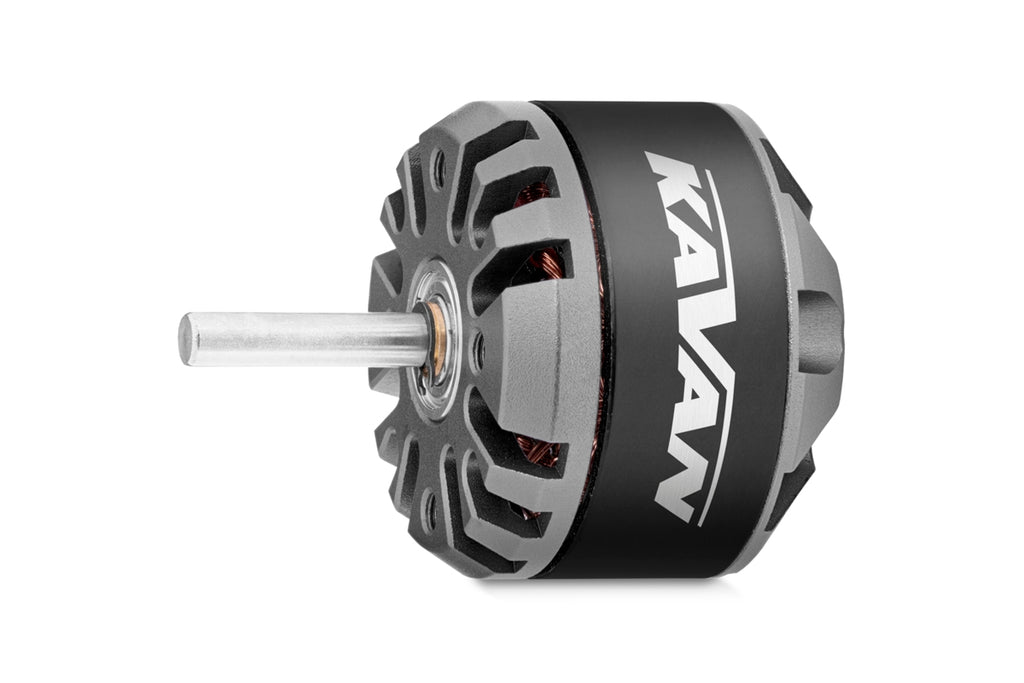

The KAVAN C3530-1050 is a brushless motor designed to power smaller models with a flight weight of up to 1200 g, powered by a two to four cell Li-poly battery.It is well suited for models of sizes such as Multiplex Easy Glider, Gemini and generally slower models, 3D aerobats where a larger diameter propeller with lower speed is preferable.

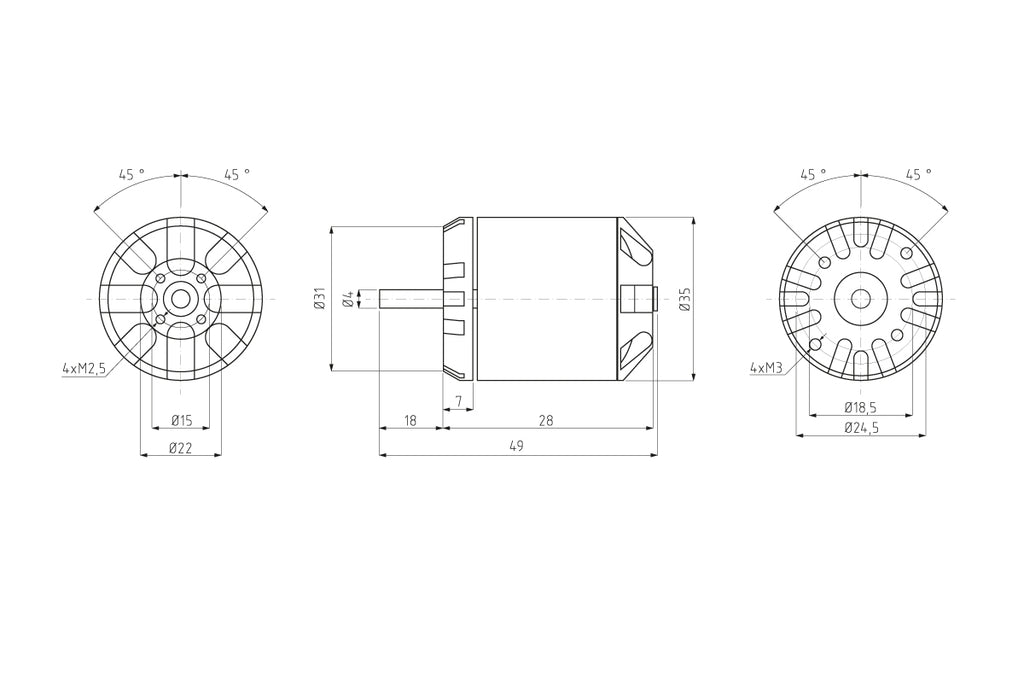

Motor mounting:The KAVAN C3530-1050 is designed for both front and rear mounting. For front mounting behind the motor face, use at least two (opposing) or four M3 bolts that engage the motor face within 4 - 5 mm. The pairs of holes for the fixing screws in the motor face are spaced regularly at 180° on circles of 25 and 19 mm diameter. The motor firewall should be 3-4 mm Birch aircraft plywood. A rear mounting kit (mounting cross, prop adaptor) is supplied with the motor.

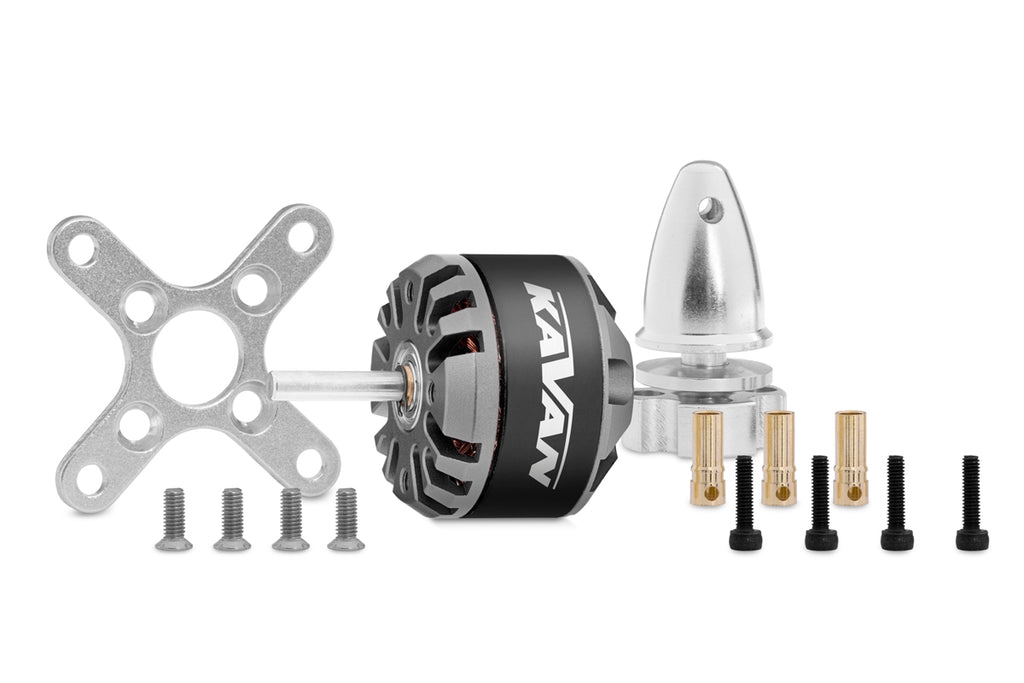

Motor kit includes: motor C3530-1050 with cables and with soldered 3.5 mm gold-plated connectors, rear mounting kit, manual.

Supply voltage LiXX cells: 2 - 4 ; RPM/V [RPM/min/V]: 1050 ; Max. power (30 s/4S LiPo) [W]: 330 ; No load current (2S) [mA]: 800 ; Max. peak current (30 s) [A]: 30 ; Diameter [mm]: 35 ; Lenght [mm]: 30 ; Shaft diameter [mm]: 4 ; Weight [g]: 80 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 35 - 45 ; Sailplane up to Weight [g]: 1200 ; Trainer up to Weight [g]: 1000 ; Acrobat up to Weight [g]: 850 ; 3d up to Weight [g]: 750
