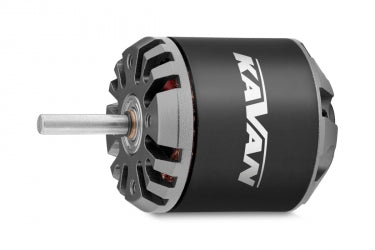

he KAVAN C3542-1000 is a brushless motor designed to power models with a flying weight of up to 2400 g, powered by a three- or four-cell Li-poly battery. It is well suited for powered acrtobatic models and scale airplanes such as Classic EP, Acromaster, Stinson EP, Piper Cub EP 1520 mm from Phoenix, thermal gliders 2,5-3 m etc.

Motor mounting:The KAVAN C3542-1000 is designed for both front and rear mounting. For front mounting behind the motor face, use at least two (opposing) or four M3 bolts that engage the motor face within 4 - 5 mm. The pairs of holes for the fixing screws in the motor face are spaced regularly at 180° on circles of 25 and 19 mm diameter. The motor firewall should be 4-5 mm Birch aircraft plywood. A rear mounting kit (mounting cross, prop adaptor) is supplied with the motor.

Motor kit includes: motor C3542-1000 with cables and with soldered 3.5 mm gold-plated connectors, rear mounting kit, manual.

Supply voltage LiXX cells: 3 - 4 ; RPM/V [RPM/min/V]: 1000 ; Max. power (30 s/4S LiPo) [W]: 500 ; No load current (3S) [A]: 2.3 ; Max. peak current (30 s) [A]: 45 ; Diameter [mm]: 35 ; Lenght [mm]: 42 ; Shaft diameter [mm]: 4 ; Weight [g]: 140 ; Nr. of poles: 14 ; Timming [°]: 15 - 25 ; ESC [A] : 50 - 60 ; Sailplane up to Weight [g]: 2400 ; Trainer up to Weight [g]: 2300 ; Acrobat up to Weight [g]: 2000 ; 3d up to Weight [g]: 1500
