KAVAN PRO 7025-510

Suitable For Pilot RC 67" Planes

KAVAN PRO 7025-510 is a 28-pole brushless motor for model aeroplanes up to 5500 g all-up weight powered by 4-6S LiPo flight battery pack. It is great for scale and aerobatic models originally designed for .60-.90 (10-15 ccm) two-stroke glow engines.

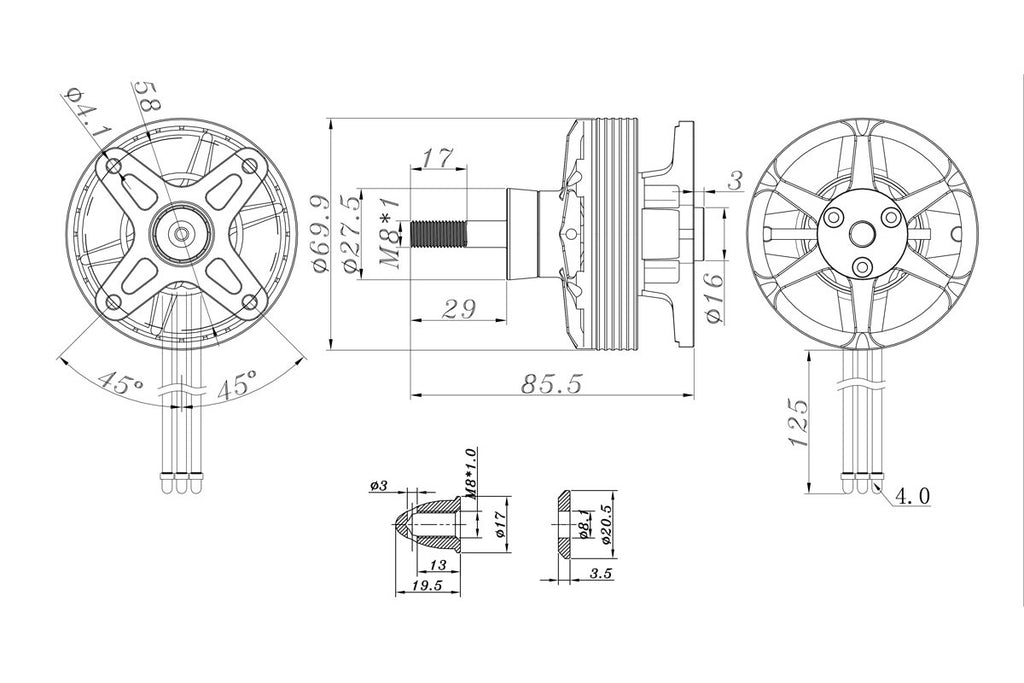

Motor installation: KAVAN 7025-510 has been designed for the radial mount installation; the mounting cross is an integral part of the motor. Use four M4 steel screws; the firewall should be made of 6.0-8.0 mm plywood.

ESC: Be sure the ESC you are using actually is designed to work with multi-pole motors (many regular ESCs designed with 2-14pole motors in mind might not work properly).

The motor set contents: KAVAN PRO 7025-510 motor w. cables (4 mm gold-plated connectors), propeller nut set.

Note: Alternative designation based on the stator dimensions: 6210-510.
