Magnetic (Hall) propeller position sensor for MAV Sense IBEX line ESCs enabling to stop the motor and propeller at an exact position (defined by the magnetic sensor location on the model and the magnet on the propeller/spinner).

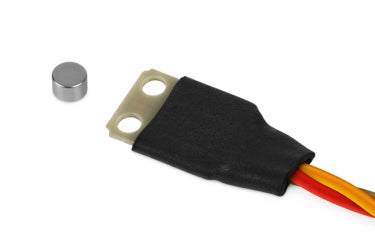

Contains a Hall sensor to be installed to the model and a small magnet to be installed to the spinner, prop driver or propeller; the gap between the sensor and magnet should not be bigger than 1 mm.

Dimensions 12x8x3 mm (sensor), Ø3x2 mm (magnet).

The set contents: Magnetic sensor w. cable, magnet, 2 screws, instruction manual.
