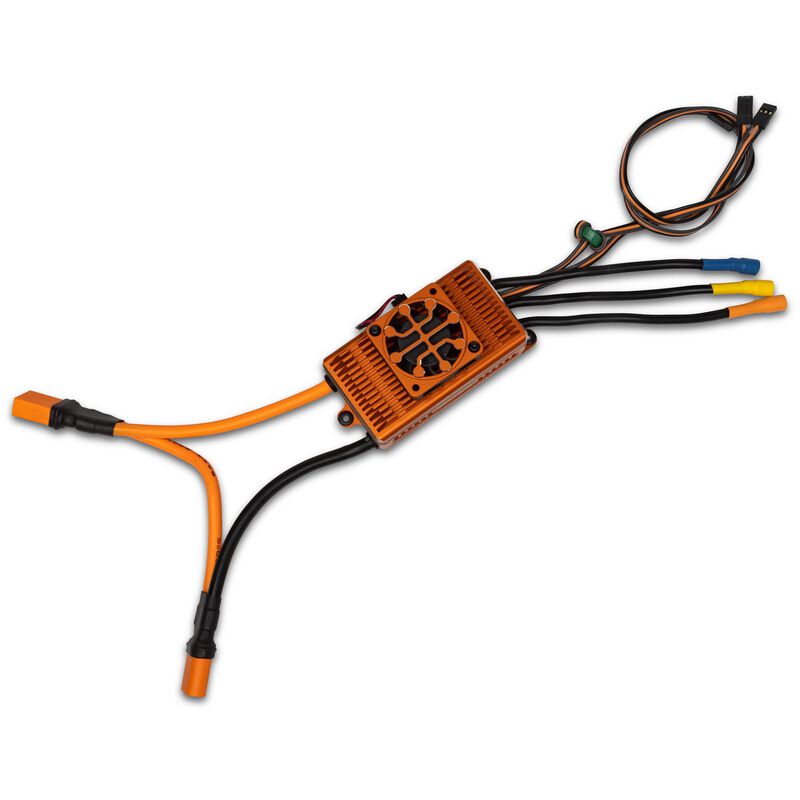

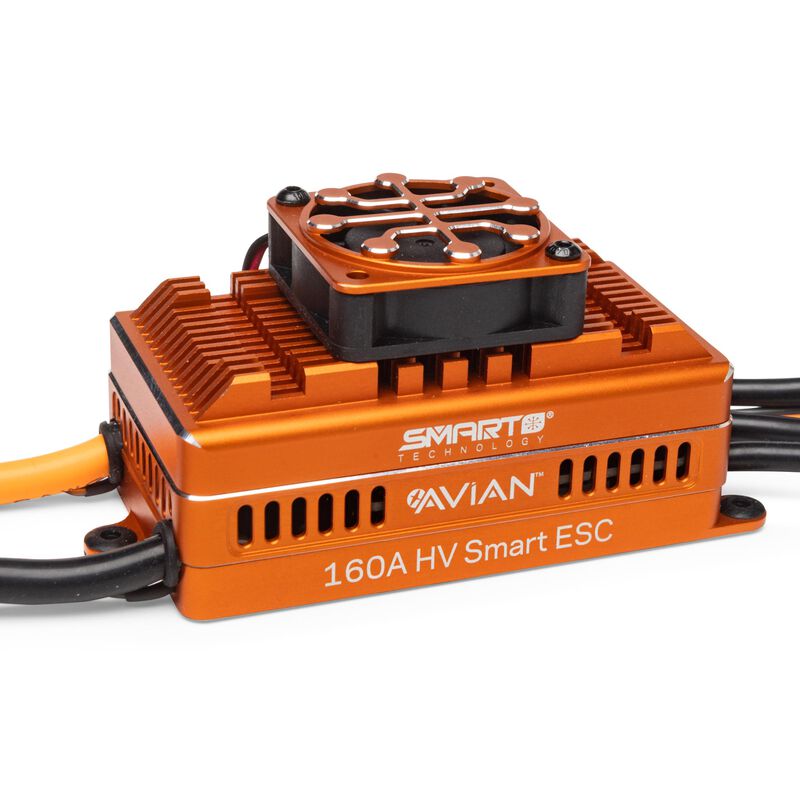

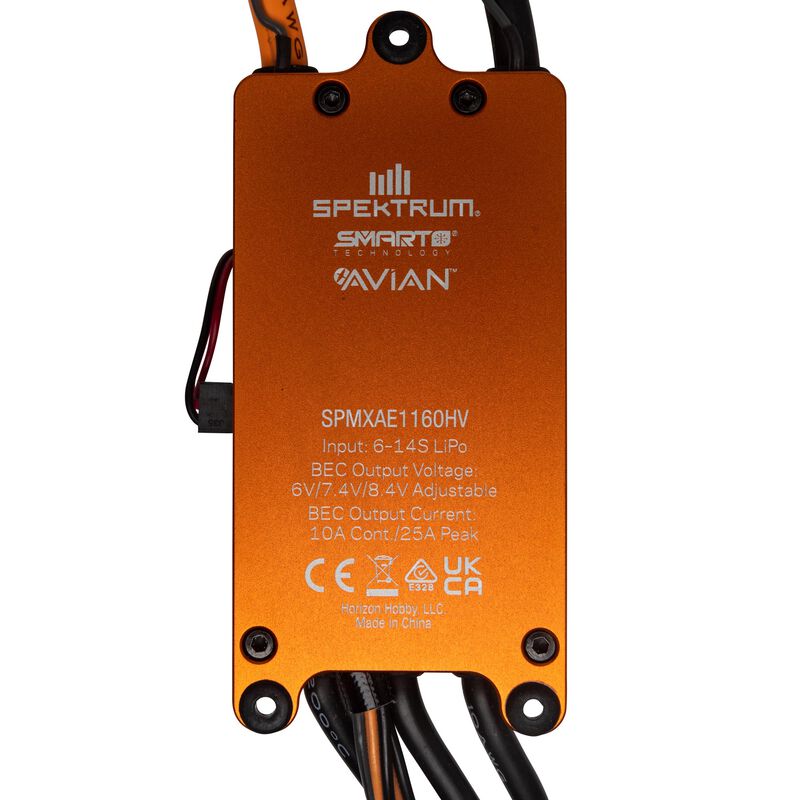

Spektrum Avian 160A HV Brushless Smart ESC 6S-14S

Spektrum Smart


€389.99




Share this product


  • Spektrum Avian 160A HV Brushless Smart ESC 6S-14S
  • Features

    • Smart all-in-one telemetry
    • Fast, powerful 32-bit ARM M4 processor
    • Multiple options for easy programming:
      • Smart ESC Programming Box
      • SmartLink USB Updating and Programmer application
      • Throttle stick programming
    • Multi-point protection:
      • Over-current protection
      • Automatic LiPo low-voltage cutoff
      • Thermal protection
      • Failsafe protection
    • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
    • Compact for easy installation in most applications
    • Ready to install — no soldering required
    • Heat dissipating design

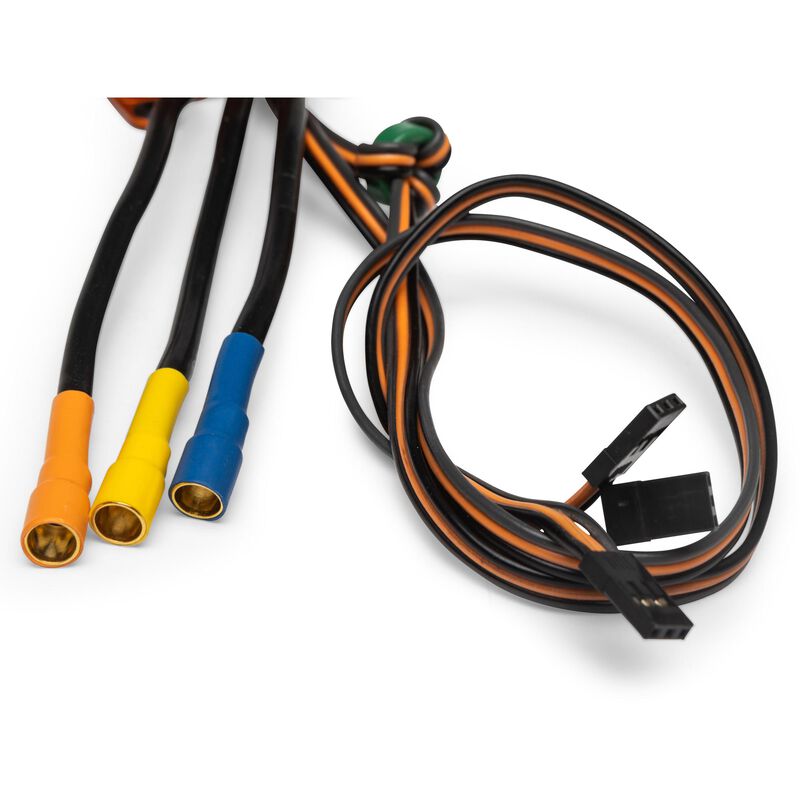

    • Dual BEC power connectors
    • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
    • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
    • Limited 1-year warranty

    Overview

    Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

    Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

    With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

    Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

    One-Wire Telemetry

    No need to connect multiple wires, sensors, modules, and links. With Avian ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.



    EC3™/EC5™ Backwards Compatible

    Avian ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3 or IC5 connector-equipped Spektrum Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.



    Smart Technology Battery Data

    When used with a Spektrum Smart LiPo battery, your Avian ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!



    Multiple Programming Options

    Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.



    Fast, Powerful M4 Processor

    The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



    Smart ESC Thrust Reversing

    Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.



    On-Screen ESC Programming

    Avian ESCs now come updated to allow pilots to program any ESC parameter, right from their Spektrum Transmitter, via the Avian Prog telemetry screen. This makes it easier to make quick setting changes, adjustments and experimentation to maximize power output or efficiency, right on the flight line, no extra boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.

    Product Specifications

    Manufacturer # 605482183175
    Product Width 1.96" (50 mm)
    Technology Smart
    Forward Yes
    Reverse Yes
    BEC Type Adjustable
    Programmable Yes
    Connector Type IC5
    Product Length 3.5" (89 mm)
    Maximum Burst Current 200A
    Maximum Continuous Current 160A
    Motor Type Brushless
    Application Air Motor
    Auto Cutoff Yes
    BEC Continous Current 10A
    Low-Voltage Cutoff Programmable Yes
    Overload Protection Yes
    Product Weight 376g (13.3oz)
    BEC Yes
    BEC Maximum Burst Current 25A
    BEC Voltage 6.0V/7.4V/8.4V
    Input Voltage 6S - 14S LiPo
    Product Height 1.4" (36 mm)
