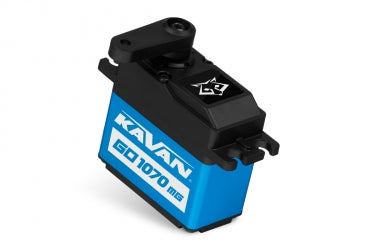

- Kavan GO-1070MG (0.105s/60°, 40kg.cm)
-
Very high torque/high speed programmable digital standard 69g servo with a brushless motor, hardened steel gear and double BB-ed output shaft. Works great in large/giant planes, 1:8 RC cars etc. Aluminium mid case for perfect cooling under high load.
GO-1070MG is programmable using the KAVAN GO servo USB programmer/interface and PC software.
Programmable Functions
- Servo Angle: Maximal servo rotation angle range setting. The default range is ca 120° within the regular RC signal pulse width range (900~2100 µs); ca 180° within the max. signal pulse width range (500~2500 µs).
- Servo Neutral: Servo neutral (centre) position setting.
- Damping Factor: Servo damping setting – adjust the characteristics of the servo when stopping.
- PWM Power: Adjusts the servo output power. The higher the power, the higher the speed and torque of the servo – indeed also the current consumption will be higher.
- Sensitivity: Servo sensitivity (Dead Band) setting. The higher sensitivity the narrower the dead band – servo moves only if the change of the signal pulse width is bigger than the dead band width. Too high setting may cause servo jitter in some applications. Range: Ultra High (ca 1 µs dead band) – High (ca 2 µs) – Medium (ca 3 µs) – Low (ca 4 µs)
- Soft Start: Turns on/off the soft start feature. If ON, the servo goes slowly to the initial position corresponding to the servo signal once the power is switched on.
- Reverse: Reverses the servo movement direction.
- Narrow Band: FUTABA SR Mode – only for use with FUTABA radio channels working in the SR mode. Do not turn the option on if you are using a different setting of your FUTABA radio or any other radio.
- SANWA SSR: SANWA SSR Mode - only for use with SANWA radio channels working in the SSR mode. Do not turn the option on if you are using a different setting of your SANWA radio or any other radio.
- Lost PPM Protection (Fail-Safe): In the case the control signal from the receiver is lost completely or cannot be decoded correctly (due to interference) the servo can use choose one of three fail-safe modes:
- (a) Release: No fail-safe protection.
- (b) Keep Position: Keeps the position corresponding to the last correct control signal.
- (c) Go Neutral Position: The servo returns to the neutral (1500 µs pulse width) position.
- Over Load protection: Enables or disables overload protection of the servo in three levels – once the overload conditions last for the pre-set time (in seconds), the output power of the servo is reduced to the corresponding pre-set level (% of the max. power).
- Default: Restores the factory default setting of the connected servo.
Wide input voltage range 4.8-8.4 V (nominal).
25T/5.92 mm output shaft.

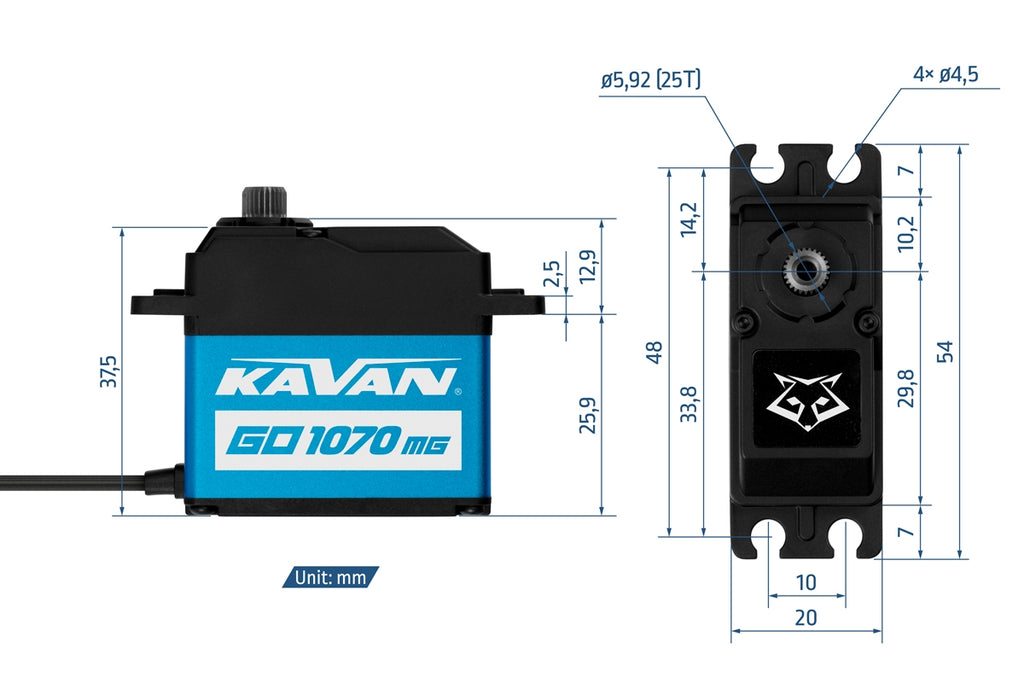

Servo dimensions Standard Servo type Digital Programmable Yes Thrust at 4.8V [kg∙cm] 27 Thrust at 6.0V [kg∙cm] 30 Thrust at 7.4V [kg∙cm] 36 Thrust at 8.4V [kg∙cm] 40 Speed at 4.8V [s/60st.] 0.18 Speed at 6.0V [s/60st.] 0.15 Speed at 7.4V [s/60st.] 0.12 Speed at 8.4V [s/60st.] 0.105 Servo gears Metal Ball bearings 2× High-voltage Yes Power supply [V] 4.8 - 8.4 Length [mm] 40 Width [mm] 20 Height [mm] 37.2 Weight [g] 69 Intended for Aeroplanes,On-road cars,Off-road cars,Sailing boats,Boats
