Features
- 10 channels 2.4 GHz receiver
- Slim design for tight fuselages
- Reception with extreme resistance to interference
- Extreme range
- Integral telemetry and servo bus (P²BUS)
- High-performance real-time telemetry
- Reception quality and battery voltage permanently available via telemetry
- 6-axis iGyro with optional iGyro SAT
- Data output switchable as FastTrack, PWM,S.BUS, SRXL or PPM12

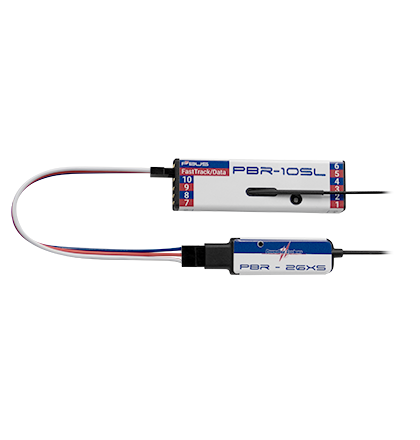

- Optional receiver extension with a PBR-26XS
- Parameter settings for all functions from the transmitter
|
|
Technical Data
Operating voltage |
4.0V - 9.0V |
Current drain Power-on state |
58mA |
Supported RC systems |
ATOM/CORE |
Channels |
10 + 1 |
Programmable servo outputs |
PWM, FastTrack, S.BUS, SRXL, PPM12 |
Servo signal resolution |
4096 Steps |
Supported telemetry systems |
P²-BUS |
Dimensions |
60 x 18 x 10 mm |
|
